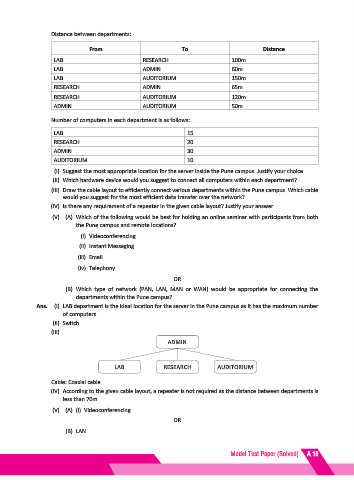

Distance between departments:


                                From                            To                          Distance
                    LAB                           RESEARCH                       100m
                    LAB                           ADMIN                          60m
                    LAB                           AUDITORIUM                     150m
                    RESEARCH                      ADMIN                          65m
                    RESEARCH                      AUDITORIUM                     120m
                    ADMIN                         AUDITORIUM                     50m

                    Number of computers in each department is as follows:

                    LAB                                           15
                    RESEARCH                                      20
                    ADMIN                                         30
                    AUDITORIUM                                    10
                    (I)  Suggest the most appropriate location for the server inside the Pune campus. Justify your choice.
                   (II)  Which hardware device would you suggest to connect all computers within each department?
                   (III)  Draw the cable layout to efficiently connect various departments within the Pune campus. Which cable
                       would you suggest for the most efficient data transfer over the network?
                   (IV)  Is there any requirement of a repeater in the given cable layout? Justify your answer.
                   (V)  (A)  Which of the following would be best for holding an online seminar with participants from both
                           the Pune campus and remote locations?
                             (i)  Videoconferencing
                            (ii)  Instant Messaging
                            (iii)  Email

                            (iv)  Telephony
                                                             OR

                        (B)  Which  type of network (PAN,  LAN,  MAN  or WAN)  would  be appropriate  for connecting  the
                           departments within the Pune campus?
              Ans.  (I)  LAB department is the ideal location for the server in the Pune campus as it has the maximum number
                       of computers.
                   (II)  Switch
                   (III)
                                                           ADMIN



                                         LAB             RESEARCH           AUDITORIUM


                    Cable: Coaxial cable
                   (IV)  According to the given cable layout, a repeater is not required as the distance between departments is
                       less than 70m.
                    (V)  (A)  (i) Videoconferencing

                                                             OR
                        (B)  LAN



                                                                                Model Test Paper (Solved)  A.15
